Trinocular Led Epi Epifluorescent Microscope

Name: Trinocular Led Epi Epifluorescent Microscope
Brand: VANCO
Price: 1 USD

Brand Name : VANCO

Model Number : L3001

Certification : CE

Place of Origin : CHINA

MOQ : ONE PC

Price : Negotiable

Supply Ability : 50pcs/month

Delivery Time : As per order quantity

Packaging Details : In styrofoam case and carton

Drawtube : Trinocular

Theory : Fluorescence Microscope

Viewing head : 360° rotatable,inclined at 30 °

Condenser : Abbe N.A.1.25

Color : White

Stage : Mechanical stage

Contact Now

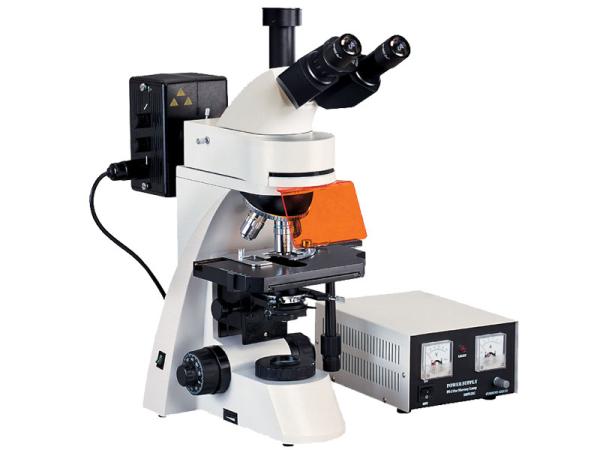

L3001 Infinity plan achromatic 4X10X40X100X LED Epi-fluorescent research microscope

L3001 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Features
▲ With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
▲ 20W 6V halogen lamp with electronic dimmer

Standard configuration

Model	L3001
Eyepiece	Wide field WF10X(¦µ20mm)
Objective	Infinity plan achromatic Objectives PL 4X/0.10
	Infinity plan achromatic Objectives PL 10X/0.25
	Infinity plan achromatic Objectives PL 40X/0.65(Spring)
	Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)
Eyepiece tube	Trinocular (Inclination of 30˚)
Focus system	Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Backward ball bearing inner locating)
Stage	Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
Abbe condenser	N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V 20W Halogen lamp ,adjustable brightness
Reflected fluorescence system	Mercury lamp house 100W/DC
	Power supply unit:AV:110V or 220V
	Fluorescence filter system B exciton wavelength:450~490nm
	Fluorescence filter system G exciton wavelength:495~555nm
	Fluorescence filter system UV exciton wavelength:320~380nm
	Fluorescence filter system V exciton wavelength:380~415nm

Optional accessories

Name	Sort/Technique parameter		NO.
Eyepiece	WF16X(¦µ11mm)		1051016
	Dividing 10X(¦µ20mm),0.1mm/Div		1121010
Objectives	Infinity plan achromatic 20X/0.40		2060120
Eyepiece tube	Binocular(Inclination of 30˚)		011104
Nosepiece	Quintuple(Backward ball bearing inner locating)		032002
Filter	Green filter		115002
	Yellow filter		115003
Phase contrast unit	Eyepiece	Centering telescope	110002
	Objectives	Infinity phase contrast plan achromatic 10X/0.25 PHP	2470110
		Infinity phase contrast plan achromatic 20X/0.40 PHP	2470120
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)	2470140
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2470111
	(PH-¢ñ) Turnplate phase contrast condenser		052001
	(PH-¢ò) Turnplate phase contrast condenser		052004
	Flashboard phase contrast condenser		052002
	Pull board phase contrast condenser		052003
CCD adapter	0.4X		810001
	0.5X		810004
	1X		810002
	0.5X with dividing 0.1mm/Div		810003
Camera	With USB & video output		800001
	With USB output		800003
	With video output		800005
Digital camera adapter	CANON digital camera adapter(A610,A620,A630,A640)		820001
Photograph unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		840001
	4X Focusing photograph attachment		840002
	MD Adapter		840003
	PK Adapter		840004
